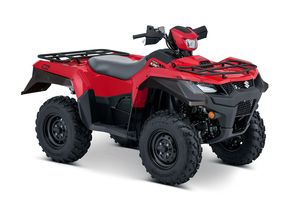

KingQuad 400 Manual
The KingQuad 400 was extensively tested and refined on New Zealand farms and is equipped with an economical fuel-injected 376 cc motor. You will spend less time at the fuel pump and get more ‘k’s between fills.
Featuring a sealed and waterproof LCD digital instrumentation including speedometer, odometer, trip meter, clock, and fuel gauge. With long travel anti-roll suspension, a twin shock rear end and a low centre of gravity, the KingQuad provides you with all-day comfortable and a stable ride.
Other features include easy to use gate style shift control for easy selection of Hi, Lo and reverse plus a torque-sensing limited slip front diff, that will find grip where it’s needed, and selectable 2WD or 4WD, through the 5-speed manual transmission. Also standard are powerful front discs and enclosed rear drums delivering reliable, all-weather stopping and almost un-necessarily a large 16-litre fuel tank.
The KingQuad 400 4WD Manual is an ATV designed to meet New Zealand’s extremely tough farming conditions. New Zealand’s ideal farm ATV.
|Engine Type||4-stroke, air-cooled with SACS, SOHC|
|Engine Displacement (CC)||376|
|Bore x Stroke||82.0 mm x 71.2 mm|
|Transmission||5-speed forward + 1 reverse|
|Fuel System||Fuel Injection|
|Overall Length (mm)||2160|
|Overall Width (mm)||1200|
|Overall Height (mm)||1220|
|Ground Clearance (mm)||250|
|Seat Height (mm)||840|
|Curb Mass (kg)||286|
|Suspension - Front||Independent, double wishbone, coil spring, oil damped|
|Suspension - Rear||Swingarm type, coil spring, oil damped|
|Brakes - Front||Disc, twin|
|Brakes - Rear||Drum|
|Tyre - Front||AT25 × 8-12**, tubeless|
|Tyre - Rear||AT25 × 10-12**, tubeless|
|Fuel Tank Capacity (L)||16|
- High torque 4 stroke, 4 valve engine
- 5 speed Manual transmission with Hi/Low and reverse
- In-gear starting ability
- 2WD/4WD handlebar control
- Large 16 litre fuel tank
- Comfortable T-shaped seat
- Torque sensing limited slip front differential
- High radius fenders and large front bumper
- 30W multi reflector headlights
- Full footboards provide ultimate protection
- Downhill engine braking
*Price Excludes GST. Price does not include any accessories or fitting. Finance offer based on 1/3 deposit ($4,149.47), 4.95% interest with two equal payments ($4,148.37) over 24 months. All finance payments include GST. Payments include $300 documentation fee and $10.35 PPSR. Normal lending and credit criteria apply. Offer not available in conjunction with any other promotion. Offer ends 31 July 2019, or while stocks last.
